Feature Description

● 80A switching capability
● Low consumption,Pulse driven operation
● Strong resistance ability to shock and vibration,High reliability
● Breakdown voltage (between contact and coil):4KV
● Environment-friendly product(RoHS compliant)
● Meet standard of IEC62052-31:2005 UC2

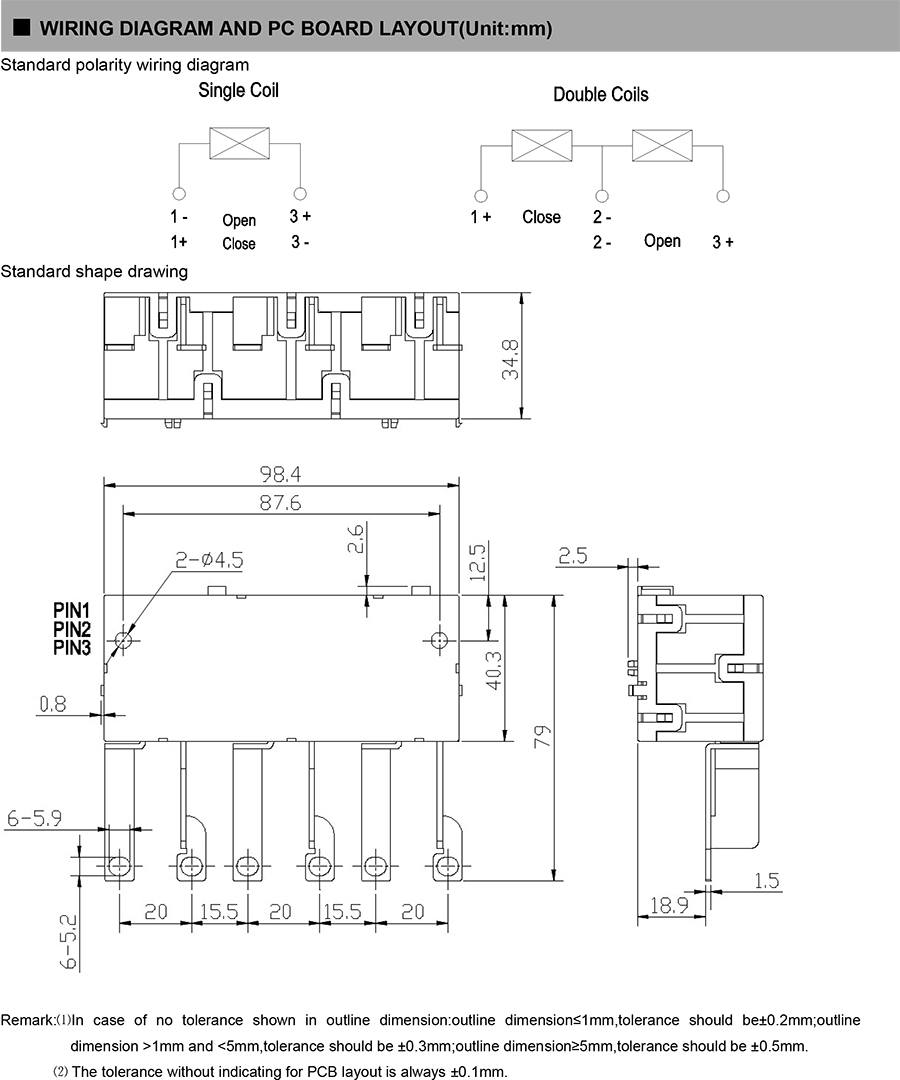

● Outline Dimensions:(98.4×40.3×34.8)mm
● Main application: smart meter
