Feature Description

● 100A switching capability
● Single coil and double coils are available
● External accessories such as manganese copper shunts and transformers can be ordered according to customer requirements
● Breakdown voltage (between contact and coil):4KV
● Environment-friendly product(RoHS compliant)

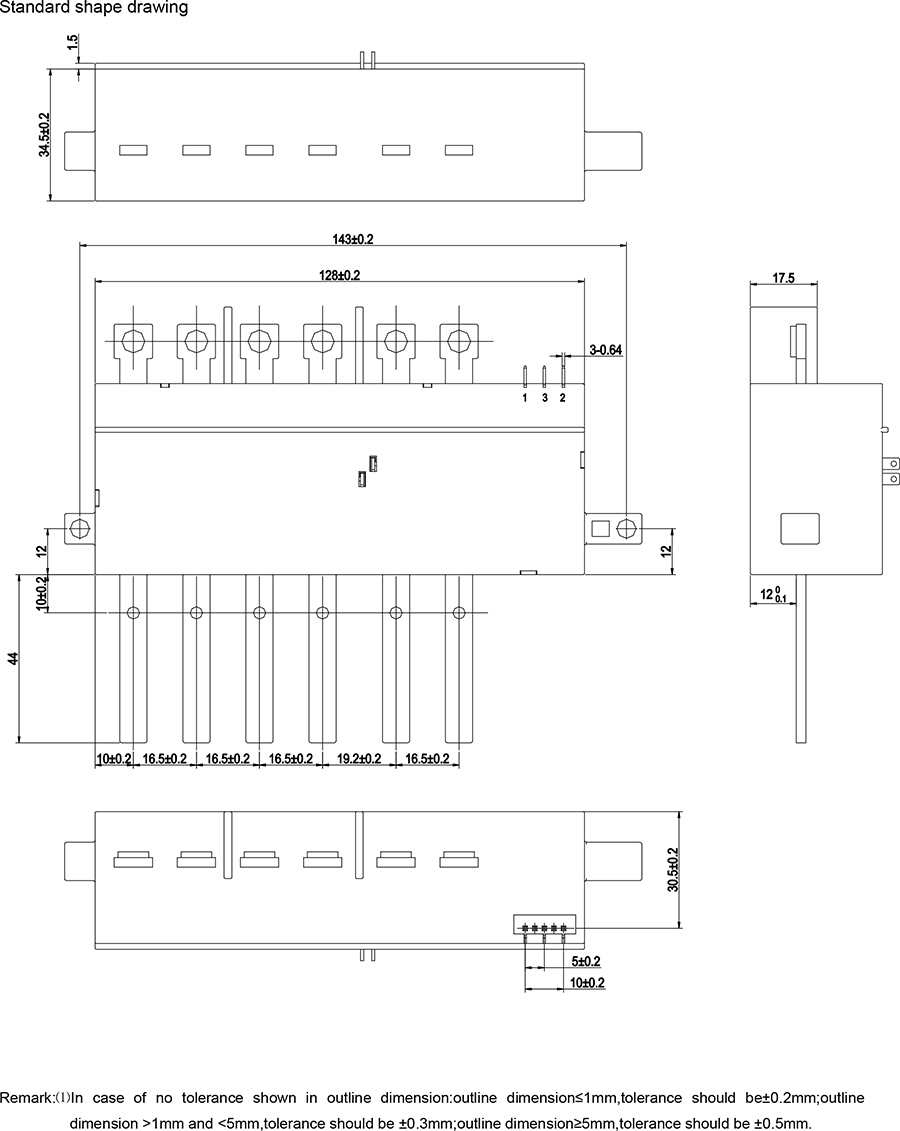

● Outline Dimensions:(128.0*30.5*34.5)mm
● Main application: smart meter
